- Industry
- Water works
- Boiler feed
- Irrigation
- Air conditioning system
- Circulation of hot, cold water with low or high pressure
- Fire fighting

Operating Data:

- Capacity: up to 100 m³/h
- Total Head: up to 400m
- Working Temperature: up to 140º C
- Maximum Casing Pressure: up to 40 bar

Materials:

- Pump Casing: Cast Iron, Bronze or Stainless Steel
- Impeller: Bronze or Stainless Steel
- Shaft: AISI 304 - 316
- Sealing with Mechanical seal or Packing gland

In water works, irrigation and sprinkler installations. As a re-circulating pump for cooling and heating water and also as a fire-fighting, boiler feed or pressure boosting pump. The MS Type pumps are used for handling clean or only lightly contaminated media, for oils up to 150 mm²/sec (CST) and for non-aggressive liquids.

Operating Data:

- Capacity: up to 550 m³/h
- Total Head: up to 300m
- Temperature: -20º C to 140º C
- Maximum Casing Pressure: 30 bar (Suction pressure + Shut off Head)

Suitable for water supply and drainage in mines, factories and cities.

Operating Data:

- Capacity: 6.3 to 450 m³/h
- Head: 22 to 650m
- Liquid Temperature: up to 80º C

Features and Benefits

- Low nose
- Stable running

In water works, irrigation and sprinkler installations. As a re-circulating pump for cooling and heating water and also as a fire-fighting, boiler feed or pressure boosting pump. The MS Type pumps are used for handling clean or only lightly contaminated media, for oils up to 150 mm²/sec (CST) and for non-aggressive liquids.

Operating Data

- Capacity: up to 130 m³/h
- Total Head: up to 1000m
- Max. Casing Pressure (Suction pressure + Closed Valve Head): 120 bar
- Temperature: -20º C to 140º C

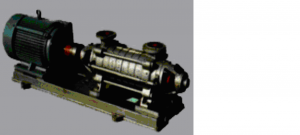

Model DG Pump is a horizontal multistage centrifugal pump and suitable for transporting pure water (with the contained foreign matters’ content less than 1% and graininess less than 0.1mm) and other liquids of both physical and chemical natures similar to those of pure water.

Operating Data

- Capacity: 3.75 to 300 m³/h
- Head: 69 to 1050m
- Inlet Diameter: 40 to 200mm
- Motor Power: 4 to 1250kw
- Fluid Temperature: up to 160º C
